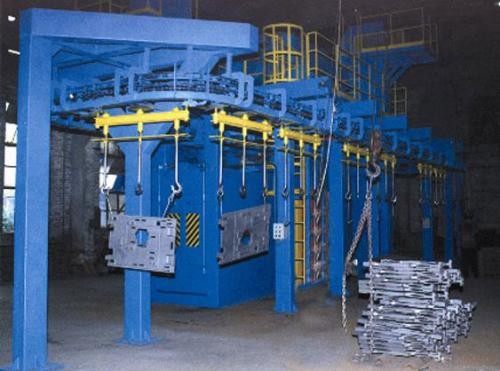

Industrial Hanger Type Shot Blasting Machine Continuous Working Overhead Rail Cleaner

Name: Industrial Hanger Type Shot Blasting Machine Continuous Working Overhead Rail Cleaner
Brand: Puhua
Price: 1 USD

Best Industrial Hanger Type Shot Blasting Machine Continuous Working Overhead Rail Cleaner wholesale

Brand Name : Puhua

Model Number : Q38

Certification : iso ce

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 20 sets per month

Delivery Time : 30 days

Packaging Details : Stretch film

Machine : Overhead chain shot blasting machine

Warranty : One Year

Hook amount : Customized

Wear parts material : Cr20S high chrome, ZGMn13, etc

Condition : New

Machine Type : Abrator

Contact Now

Q38 High Efficiency Overhead Chain Continuous Shot Blasting Machine

Industrial Hanger Type Shot Blasting Machine Continuous Working Overhead Rail Cleaner

Q38 shot blasting machine is used for surface cleaning and strengthening of steel structural part, castings, aluminum alloy parts and other spare parts. The machine is consists of shot blasting chamber, elevator, separator, screw conveyor, shot blasting wheel, abrasive control system, hook system, autorotation device, foundation, dust removal system and electrical control system, etc.

Ferrous and non-ferrous castings
Heat treated forgings
Many kinds of castings
Die castings and much more
Lower value parts where part on part impingement is not an issue
When production requires dictate batch processing
Small to medium size castings, fabrications and heat-treated parts

It makes a best effect on complicated workpieces both the surface and inner part, such as cylinder cap of engine and motor casing
It is an ideal choice for auto, tractor, diesel engine, motor and valve industry.

Technical specification:

No	Item Model		Pendant chain step-type blasting machine			Pendant chain continuous blast machine
No	Item Model		Q483	Q485	Q4810	Q583	Q5810
1	Max weight of piece	kg	300	500	800	300	1000
2	Size of workpiece	mm	1000*1400	1200*1700	700*2400	1000*1500	750*2400
3	Abrasive flow rate	kg/m	2*250	3*250	6*360	4*250	6*360
4	Productivity	Hook/h	10	10	10	30-60	50
5	Speed of chain	m/min	2.44	7.34	2.44	Converter speed
6	Lifting distance of pendant chain	mm	2560	2560	2560	1000
7	Ventilation capacity	M3/h	6000	10000	25000	18000	25000
8	Power(not include dust collector)	kw	38.75	58.43	85	127.25	160
9	Outline dimension	mm	84505350 5003	122355410 9411	45005350 5003	180005960 6440	177009615 10000
